Learner

fastai Learners for spectral models

from fastcore.test import *
from fastai.callback.schedule import *
from soilspecdl.datasets import load_toy_kssl
from soilspecdl.models import SpectralCNN
from soilspecdl.transforms import BatchSNV

A spectral model has two parts. The backbone turns each spectrum into a vector of features. The head maps those features to the prediction. SpectralCNN and its configurations, such as MirzaiCNN, follow this layout.

Fine-tuning a pretrained backbone treats the two parts differently. The head is new and trains first, while the backbone stays fixed. The backbone then adapts with a lower learning rate. fastai does both through parameter groups: Learner.freeze freezes every group except the last, and a slice of learning rates spreads them across the groups, lowest first. fastai’s default Learner puts all parameters in one group, so it can do neither.

---

source

spectral_splitter

def spectral_splitter(
    m, # Model with `backbone` and `head` attributes
)->list: # Parameter groups: backbone, then head

Split a spectral model’s parameters into backbone and head groups

For the default SpectralCNN, the head holds the 257 parameters of Linear(256, 1). The backbone holds the rest:

model = SpectralCNN()
groups = spectral_splitter(model)
n_params = [sum(p.numel() for p in g) for g in groups]
test_eq(n_params[1], 257)
n_params

[131600, 257]

spectral_learner builds a Learner with spectral_splitter. Its defaults suit regression: mean squared error as the loss and R² as the metric. Pass loss_func and metrics for other tasks, such as classification.

---

source

spectral_learner

def spectral_learner(
    dls, # DataLoaders, e.g. from `get_spectral_dls`
    model, # Model with `backbone` and `head`, e.g. `SpectralCNN()`
    loss_func:NoneType=None, # Loss function; `MSELossFlat()` if None
    metrics:NoneType=None, # Metrics; `R2Score()` if None
    splitter:function=spectral_splitter, # Function splitting the model's parameters into groups
    *, opt_func:fastai.optimizer.Optimizer | fastai.optimizer.OptimWrapper=Adam, # Optimization function for training
    lr:float | slice=0.001, # Default learning rate
    cbs:fastai.callback.core.Callback | collections.abc.MutableSequence | None=None, # `Callback`s to add to `Learner`
    path:str | pathlib.Path | None=None, # Parent directory to save, load, and export models. Defaults to `dls` `path`
    model_dir:str | pathlib.Path='models', # Subdirectory to save and load models
    wd:float | int | None=None, # Default weight decay
    wd_bn_bias:bool=False, # Apply weight decay to normalization and bias parameters
    train_bn:bool=True, # Train frozen normalization layers
    moms:tuple=(0.95, 0.85, 0.95), # Default momentum for schedulers
    default_cbs:bool=True, # Include default `Callback`s
)->fastai.learner.Learner:

Learner for a spectral model, with backbone and head parameter groups

The examples train on the toy dataset from soilspecdl.datasets, predicting exchangeable potassium (Kex) from 500 KSSL MIR spectra:

toy = load_toy_kssl()
X, y, ids = toy.xy('k.ext_usda.a725_cmolc.kg')
dls, test_idx = get_spectral_dls(X, y.flatten(), toy.wavenumbers, batch_tfms=[BatchSNV()])

The optimizer has one parameter group for the backbone and one for the head:

learn = spectral_learner(dls, SpectralCNN())
learn.create_opt()
test_eq(len(learn.opt.param_groups), 2)
len(learn.opt.param_groups)

2

freeze stops training of the backbone. Following fastai’s default train_bn=True, the backbone’s normalization layers still train, so the head and the BatchNorm weights are the only trainable parameters:

def n_trainable(m): return sum(p.numel() for p in m.parameters() if p.requires_grad)

learn.freeze()
test_eq(n_trainable(learn.model.head), 257)
n_trainable(learn.model.backbone), n_trainable(learn.model.head)

(992, 257)

Train the head first, with the backbone frozen. One epoch at each stage shows the steps, not a trained model:

learn.fit_one_cycle(1, lr_max=1e-3)

█
epoch     train_loss  valid_loss  r2_score  time
█

Epoch 1/1 : |----------------------------------------| 0.00% [0/12 00:00<?]
Epoch 1/1 : |███-------------------------------------| 8.33% [1/12 00:00<00:01]
Epoch 1/1 : |██████----------------------------------| 16.67% [2/12 00:00<00:00... 0.7037]
Epoch 1/1 : |██████████------------------------------| 25.00% [3/12 00:00<00:00... 0.8024]
Epoch 1/1 : |█████████████---------------------------| 33.33% [4/12 00:00<00:00... 0.7921]
Epoch 1/1 : |████████████████------------------------| 41.67% [5/12 00:00<00:00... 0.7174]
Epoch 1/1 : |█████████████████████████████████-------| 83.33% [10/12 00:00<00:00... 0.7638]
Epoch 1/1 : |████████████████████████████████████████| 100.00% [12/12 00:00<00:00... 0.7745]
Epoch 1/1 :

Epoch 1/1 :
█

Epoch 1/1 : |----------------------------------------| 0.00% [0/2 00:00<?]
Epoch 1/1 : |████████████████████--------------------| 50.00% [1/2 00:00<00:00]
Epoch 1/1 : |████████████████████████████████████████| 100.00% [2/2 00:00<00:00... 0.7363]
Epoch 1/1 :

Epoch 1/1 :
0         0.736343    0.248580    -0.012090 00:00

Then unfreeze, and train the whole model with a slice of learning rates. The backbone gets the lower rate and the head the higher one:

learn.unfreeze()
learn.opt.set_hyper('lr', slice(1e-5, 1e-3))
lrs = [h['lr'] for h in learn.opt.hypers]
test_close(lrs, [1e-5, 1e-3])
lrs

[1e-05, 0.001]

learn.fit_one_cycle(1, lr_max=slice(1e-5, 1e-3))

█
epoch     train_loss  valid_loss  r2_score  time
█

Epoch 1/1 : |----------------------------------------| 0.00% [0/12 00:00<?]
Epoch 1/1 : |███-------------------------------------| 8.33% [1/12 00:00<00:00]
Epoch 1/1 : |██████----------------------------------| 16.67% [2/12 00:00<00:00... 0.4646]
Epoch 1/1 : |██████████------------------------------| 25.00% [3/12 00:00<00:00... 0.6536]
Epoch 1/1 : |█████████████---------------------------| 33.33% [4/12 00:00<00:00... 0.5480]
Epoch 1/1 : |████████████████------------------------| 41.67% [5/12 00:00<00:00... 0.5559]
Epoch 1/1 : |████████████████████████████████████████| 100.00% [12/12 00:00<00:00... 0.5573]
Epoch 1/1 :

Epoch 1/1 :
█

Epoch 1/1 : |----------------------------------------| 0.00% [0/2 00:00<?]
Epoch 1/1 : |████████████████████--------------------| 50.00% [1/2 00:00<00:00]
Epoch 1/1 : |████████████████████████████████████████| 100.00% [2/2 00:00<00:00... 0.6249]
Epoch 1/1 :

Epoch 1/1 :
0         0.624940    0.249138    -0.014361 00:00

Cross-validation

Cross-validation chooses a training schedule, such as the number of epochs, without touching the test set. cross_validate trains one model per fold from get_kfold_splitters, and returns each fold’s losses and metrics after every epoch.

fastai’s Recorder keeps the values of the latest fit call only. A fine-tuning schedule makes two calls: one with the backbone frozen, one after unfreezing. _EpochLog records every epoch across all calls:

---

source

cross_validate

def cross_validate(
    X, # Spectral data matrix
    y, # Target values
    wns, # Wavenumbers
    model_fn, # Function returning a fresh model, called once per fold
    fit, # Function training a fold's `Learner`
    n_splits:int=5, # Number of folds
    seed:int=42, # Random seed for the fold shuffle
    bs:int=32, # Batch size
    batch_tfms:NoneType=None, # Batch transforms, e.g. [BatchSNV()]
    *, loss_func:NoneType=None, # Loss function; `MSELossFlat()` if None
    metrics:NoneType=None, # Metrics; `R2Score()` if None
    splitter:function=spectral_splitter, # Function splitting the model's parameters into groups
    opt_func:fastai.optimizer.Optimizer | fastai.optimizer.OptimWrapper=Adam, # Optimization function for training
    lr:float | slice=0.001, # Default learning rate
    cbs:fastai.callback.core.Callback | collections.abc.MutableSequence | None=None, # `Callback`s to add to `Learner`
    path:str | pathlib.Path | None=None, # Parent directory to save, load, and export models. Defaults to `dls` `path`
    model_dir:str | pathlib.Path='models', # Subdirectory to save and load models
    wd:float | int | None=None, # Default weight decay
    wd_bn_bias:bool=False, # Apply weight decay to normalization and bias parameters
    train_bn:bool=True, # Train frozen normalization layers
    moms:tuple=(0.95, 0.85, 0.95), # Default momentum for schedulers
    default_cbs:bool=True, # Include default `Callback`s
)->pandas.DataFrame: # One row per fold and epoch

Train one model per fold with fit, returning each fold’s losses and metrics after every epoch

model_fn builds a new model for each fold, so no fold starts from weights trained in another. For fine-tuning, model_fn loads the pretrained backbone. fit holds the whole schedule. This one trains the head for 2 epochs with the backbone frozen, then the whole model for 8 epochs. no_bar and no_logging hide fastai’s progress tables, one per fit call and fold:

def fit(learn):
    with learn.no_bar(), learn.no_logging():
        learn.freeze()
        learn.fit_one_cycle(2, lr_max=1e-3)
        learn.unfreeze()
        learn.fit_one_cycle(8, lr_max=slice(1e-5, 1e-3))

res = cross_validate(X, y.flatten(), toy.wavenumbers, model_fn=SpectralCNN, fit=fit, batch_tfms=[BatchSNV()])
test_eq(len(res), 5 * 10)
test_eq(res.groupby('stage')['epoch'].unique().map(list).tolist(), [[0, 1], list(range(2, 10))])
res.head()

	fold	epoch	stage	train_loss	valid_loss	r2_score
0	0	0	0	1.336636	0.741747	-0.398279
1	0	1	0	0.907791	0.525061	0.010198
2	0	2	1	0.572493	0.522077	0.015823
3	0	3	1	0.546921	0.522926	0.014224
4	0	4	1	0.536715	0.488587	0.078957

Epochs are numbered across both fit calls, and stage is the index of the call. Stage 0 holds epochs 0 and 1, with the backbone frozen. Stage 1 holds epochs 2 to 9. Averaging over folds gives one validation curve. Its best epoch sets the schedule for the final model, trained on all the samples. Ten epochs from random weights reach a mean R² of about 0.1 here, so these values show the steps, not a trained model:

res.groupby('epoch')['r2_score'].agg(['mean', 'std'])

	mean	std
epoch
0	-0.156680	0.157696
1	-0.060754	0.098638
2	-0.077009	0.153572
3	-0.023327	0.053943
4	0.003221	0.110636
5	0.035951	0.089084
6	0.052695	0.051765
7	0.072717	0.048490
8	0.084906	0.043491
9	0.086939	0.043784

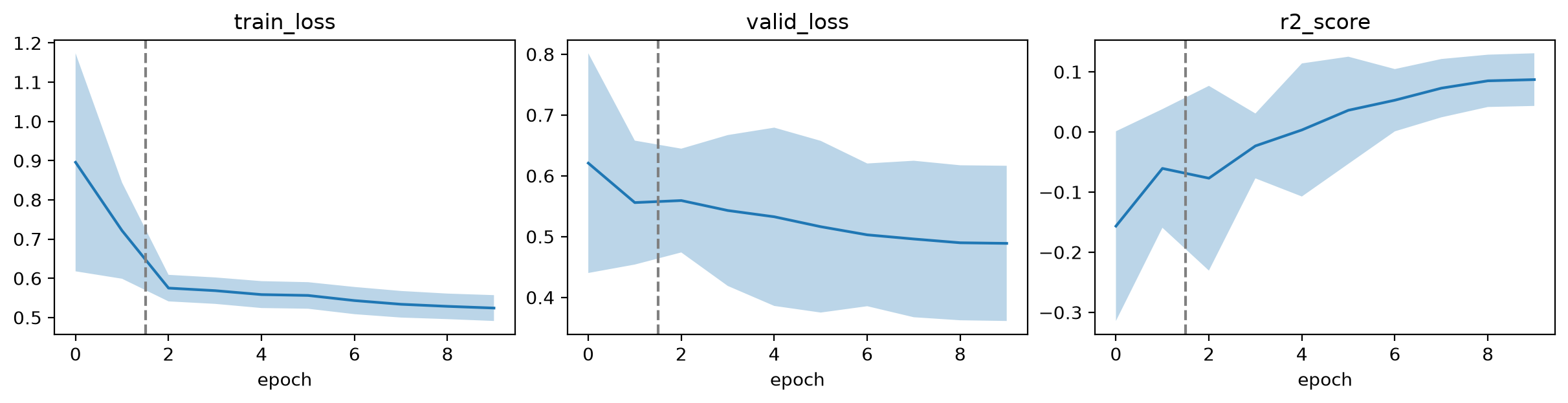

plot_cv draws the same summary for several columns at once, one panel each. A line shows the mean over folds, and a band shows ±1 standard deviation. A dashed line marks where each stage after the first begins. A training loss that keeps falling while the validation loss rises shows overfitting.

---

source

plot_cv

def plot_cv(
    res, # DataFrame from `cross_validate`
    cols:tuple=('train_loss', 'valid_loss', 'r2_score'), # Columns to plot, one panel each
    axs:NoneType=None, # One matplotlib Axes per column; a new figure if None
):

Plot the mean over folds of each column in cols against epoch, with a band of ±1 standard deviation

plot_cv(res);
