SoilSpecDL

Deep learning for soil infrared spectra, built on fastai

SoilSpecDL trains deep learning models on soil infrared spectra. It builds fastai DataLoaders from spectra and soil properties, and provides 1D convolutional neural networks (CNNs) for spectra, including the architecture of Albinet et al. (2022). Any fastai Learner can then train them, with fastai’s learning rate finder, one-cycle training and callbacks.

SoilSpecDL follows the fastai philosophy: state-of-the-art deep learning should be accessible to domain scientists, not just to machine learning practitioners. If you are a soil scientist who uses R packages like resemble or prospectr, this package is designed with you in mind. Training a CNN on a large MIR spectral library should take a few lines of code, not a PhD in machine learning.

SoilSpecDL is part of a Python ecosystem for soil spectroscopy:

Installation

pip install -U soilspecdl

To install the development version, with nbdev, run this in the project root with uv:

uv sync --extra dev

Quick start

from soilspecdl.all import * imports every SoilSpecDL function and class. Each also has its own module, such as soilspecdl.models, for explicit imports. The fastai imports show what SoilSpecDL uses from fastai: the Learner, a loss, a metric, and the training schedule that adds fit_one_cycle and lr_find.

This example predicts exchangeable potassium (Kex) from the MIR spectra of the Open Soil Spectral Library (OSSL). SoilSpecData gives the spectra and Kex values of every OSSL sample that has both. The first call to load_ossl downloads about 1 GB, and loading needs about 12 GB of memory. The example preprocesses the spectra with standard normal variate (SNV) and a first derivative, and log-transforms Kex, whose distribution is skewed. Then it trains MirzaiCNN, the CNN of Albinet et al. (2022):

import numpy as np
from sklearn.pipeline import Pipeline
from soilspecdata.all import *
from soilspectfm.all import *
from fastai.learner import Learner
from fastai.losses import MSELossFlat
from fastai.metrics import R2Score
from fastai.callback.schedule import *
from soilspecdl.all import *
mir = load_ossl().mir()
X, y, ids = mir.xy('k.ext_usda.a725_cmolc.kg')
pipe = Pipeline([
    ('snv', SNV()),
    ('deriv', SavitzkyGolay(deriv=1))])
X_tfm = pipe.fit_transform(X)
y_tfm = np.log1p(y.flatten())

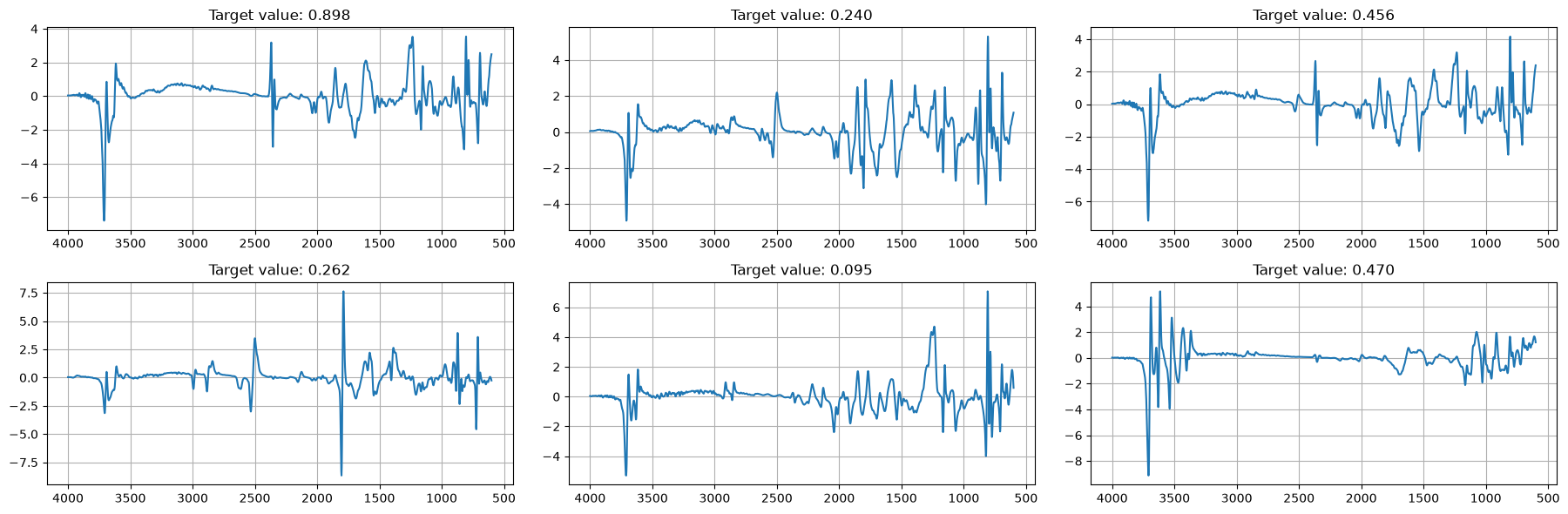

get_spectral_dls splits the samples into train, validation and test sets, and returns the fastai DataLoaders and the test set’s indices. StandardizeSpectrum rescales each spectrum after the derivative has shrunk it, to the scale a CNN’s weight initialization expects. Each spectrum in a batch plots against its wavenumbers:

dls, test_idx = get_spectral_dls(
    X_tfm, y_tfm, mir.wavenumbers,
    batch_tfms=[StandardizeSpectrum()])
dls.show_batch(max_n=6, ncols=3)

Train MirzaiCNN with a fastai Learner, with mean squared error as the loss and R² as the metric:

learn = Learner(
    dls, MirzaiCNN(),
    loss_func=MSELossFlat(),
    metrics=R2Score())

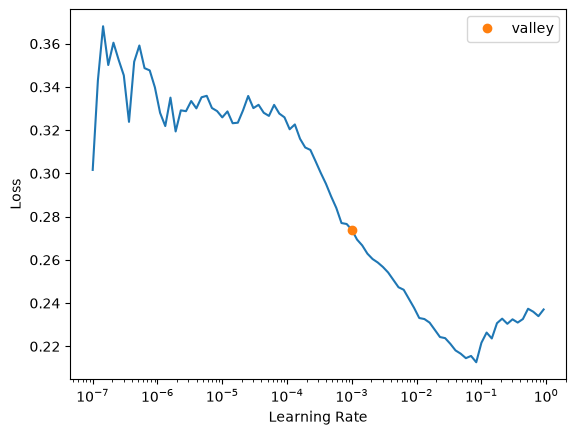

Find a learning rate, then train:

learn.lr_find()
SuggestedLRs(valley=0.0010000000474974513)

learn.fit_one_cycle(20, lr_max=1e-3)
epoch train_loss valid_loss r2_score time
0 0.095762 0.075750 0.464282 00:07
1 0.075270 0.065856 0.534250 00:08
2 0.067920 0.217066 -0.535135 00:08
3 0.065452 0.174799 -0.236214 00:08
4 0.056049 0.107070 0.242781 00:08
5 0.052376 0.064878 0.541171 00:07
6 0.051645 0.072169 0.489606 00:08
7 0.052505 0.051545 0.635461 00:08
8 0.043817 0.095978 0.321224 00:07
9 0.043177 0.038569 0.727231 00:08
10 0.035958 0.045942 0.675091 00:07
11 0.033559 0.036335 0.743031 00:07
12 0.030954 0.034623 0.755139 00:07
13 0.031828 0.034456 0.756324 00:10
14 0.031579 0.035145 0.751448 00:08
15 0.028053 0.032126 0.772796 00:07
16 0.027793 0.031156 0.779655 00:08
17 0.026475 0.031309 0.778577 00:08
18 0.028219 0.030562 0.783858 00:08
19 0.026852 0.030464 0.784555 00:08

Upgrading from 0.0.x

Version 0.1.0 changes the API of soilspecdl. To update code written for version 0.0.x:

  • MirzaiCNN is now a function that returns a SpectralCNN. It no longer accepts out_channel or conv_block_cls. Weights saved from version 0.0.x load unchanged.
  • FeatureExtractor takes the output channels of each block as nfs, instead of out_channel and n_layers. It returns (batch, channels) instead of (batch, channels, 1).
  • SpectralBlock() is now SpectralBlock(wns).
  • The TensorSpectrum.wns class attribute is gone. Each spectrum carries its wavenumbers in wns, and get_spectral_dls stores them once in dls.wns.
  • get_spectral_dls raises a ValueError when wns does not have one value per column of X.
  • get_splitter raises a ValueError when train_pct + valid_pct exceeds 1. Before, its check could never fail.
  • get_fuku_cs137, ConvBlockBaseline, RegressionFloatBlock, SpectralTarget, cnt_params, get_mir_k_1k_smp and the soilspecdl.core module are gone. To count a model’s parameters, use fastai’s learn.summary(). For example data, use load_toy_kssl.
  • SoilSpecDL now requires SoilSpecData 0.2.1 or later, and SoilSpecTfm 0.1.1 or later.

Contributing

Contributions are welcome. SoilSpecDL is built with nbdev: the notebooks in nbs/ are the source of the code, the documentation and the tests. After changing a notebook, export the code, run the tests, clean the notebooks and rebuild the README with:

uv run nbdev-prepare

Report bugs and ask questions in GitHub issues.

License

SoilSpecDL is under the Apache 2.0 licence. The toy dataset comes from OSSL, which publishes KSSL data under CC BY 4.0.
